openAir multitrack receiver

€550.00
excl. tax and shipping

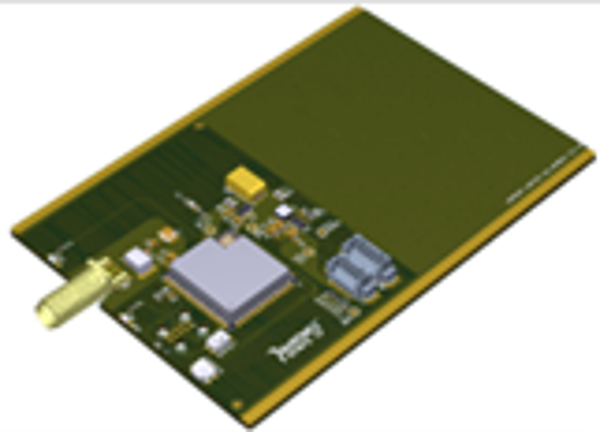

openAir multitrack is a high-performance all-in-one ADS-B/ADS-L/OGN/REMOTE-ID receiver with integrated GNSS module.The device offers a combined high-performance RF frontend for the 868 and 1090 MHz frequencies and supports all major surveillance protocols. The powerful multi-core processor that allows running multiple feeding applications, a web-based traffic display and configuration tool and custom applications on request. Messages are timestamped in nanosecond resolution to filter duplicate messages and provide high quality multilateration results. High dynamic range frontend allows installation directly at airports.

The receiver feeds to the AERO network, the Open Glider Network and to SafeSky. All data is available in multiple protocols on local TCP sockets. Each receiver contributes automatically to the central multilateration calculations.

A multiband antenna receiving on 868,1090 MHz and GNSS together with 15m antenna cable, mounting accessories and a power adapter are included.

The outdoor enclosure option includes Power-Over-Ethernet injector and 15m outdoor LAN cableand a 3m antenna cable.

Product details
